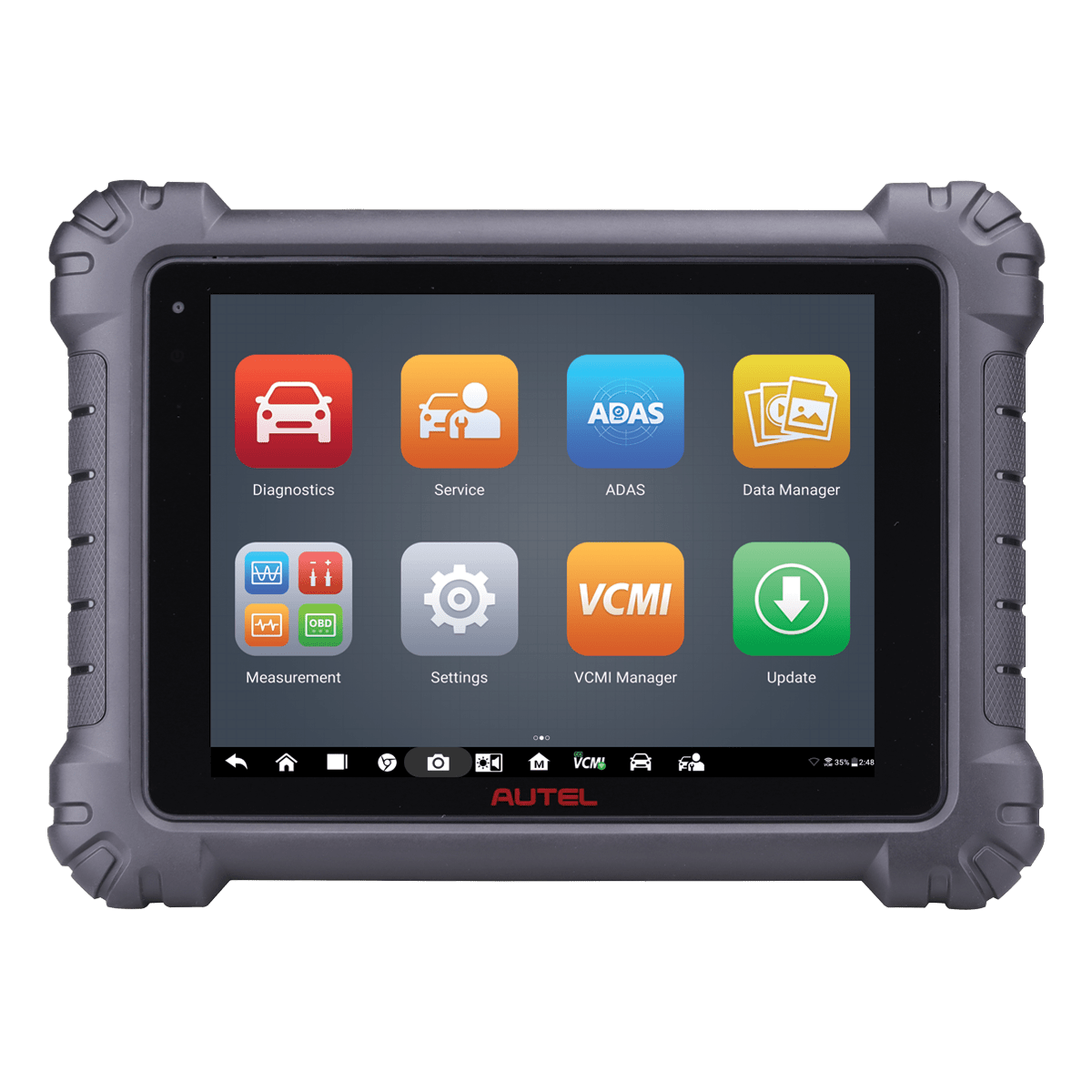

MaxiSYS MS919

OBDII Bi-Directional Diagnostic Scanner with MaxiFlash VCMI
MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor,128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles, and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.

  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

  • Automatic system and software updates with real-time push message notifications via internet

  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Operating System Android 7.0 / Android 10.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity

  • Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO)

  • BT V5.0 + BR/EDR

  • GPS

  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

  • HDMI 2.0

  • SD Card (Support up to 256GB)


Camera (rear)

  •

    Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 16 Megapixel


Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

  • Microphone

  • Dual Speakers

  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery

  • 15000mAh 3.8V lithium-polymer battery

  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature  0 to 50°C (32 to 122°F)
Storage Temperature  -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66lb.)

Protocols

 CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Description
  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Specifications
Operating System Android 7.0 / Android 10.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT V5.0 + BR/EDR
  • GPS
  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
  • HDMI 2.0
  • SD Card (Support up to 256GB)


Camera (rear)

  • Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 16 Megapixel


Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 15000mAh 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature  0 to 50°C (32 to 122°F)
Storage Temperature  -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66lb.)
Protocols CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
