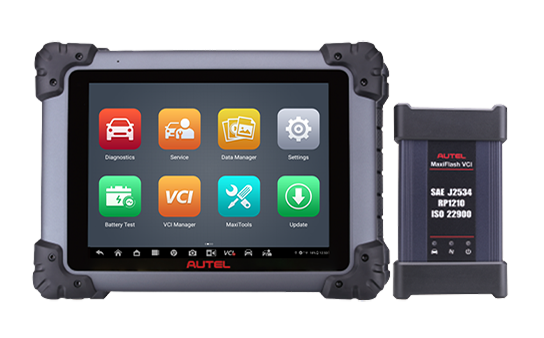

MaxiSYS Elite II Pro
The MaxiSys Elite II Pro is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10 operating system. Includes Bluetooth-enabled MaxiFlash VCI/J2534 pass thru programming device. The MaxiSys Elite II Pro rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming.
- The most extensive complete system coverage for more than 80 US, domestic, Asian and European makes and models
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
- Automatic system and software updates with real-time push message notifications via internet
- Instant remote control tech support anytime, anywhere
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
| Operating System | Android 10.0 |
| Processor | Octa-core Processor： 4x 2.2 GHz(A73) 4x 1.8 GHz(A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 1536*2048 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0：(2 USB HOST Type A, 1 USB mini device) | |
| HDMI 2.0 | |
| SD Card | |
| Camera (rear) | Rear: 16 Megapixel, AF with Flashlight |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery |
| Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V (9-24 V) |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60 (14 to 140 °F) |
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
| MaxiSYS Elite II Pro | MaxiSYS Elite II | MaxiSYS Elite | |
| All Systems DTC Scan | √ | √ | √ |
| Service Function | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ |
| ECU Coding | √ | √ | √ |
| ECU Programming | √ | √ | √ |
| Report Management | √ | √ | √ |
| Data Manager | √ | √ | √ |
| Shop Manager | √ | √ | √ |
| Remote Support | √ | √ | √ |
| Print Feature | √ | √ | √ |
| Multi-language Support | √ | √ | √ |
| CANFD | √ | √(require adapter) | √(require adapter) |
| DoIP | √ | √(require adapter) | √(require adapter) |
| Display Size | 9.7″ | 9.7″ | 9.7″ |
| Wireless VCI | MaxiFlash VCI | MaxiFlash Elite | MaxiFlash Elite |
| Battery Life | 11000 mAh 3.7 V | 15400 mAh 3.7 V | 11000 mAh 3.7 V |
| Memory Storage | 128GB | 128GB | 64GB |
| Operating System | Android 10 | Android 7.0 | Android 4.4.4 |
| TPMS | — | — | — |
| Oscilloscope | √ | √ | √ |
| Inspection Camera | √ | √ | √ |
| ADAS | — | — | √ |
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Description
- The most extensive complete system coverage for more than 80 US, domestic, Asian and European makes and models
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
- Automatic system and software updates with real-time push message notifications via internet
- Instant remote control tech support anytime, anywhere
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
Specifications
| Operating System | Android 10.0 |
| Processor | Octa-core Processor： 4x 2.2 GHz(A73) 4x 1.8 GHz(A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 1536*2048 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0：(2 USB HOST Type A, 1 USB mini device) | |
| HDMI 2.0 | |
| SD Card | |
| Camera (rear) | Rear: 16 Megapixel, AF with Flashlight |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery |
| Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V (9-24 V) |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60 (14 to 140 °F) |
Video
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Comparison
| MaxiSYS Elite II Pro | MaxiSYS Elite II | MaxiSYS Elite | |
| All Systems DTC Scan | √ | √ | √ |
| Service Function | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ |
| ECU Coding | √ | √ | √ |
| ECU Programming | √ | √ | √ |
| Report Management | √ | √ | √ |
| Data Manager | √ | √ | √ |
| Shop Manager | √ | √ | √ |
| Remote Support | √ | √ | √ |
| Print Feature | √ | √ | √ |
| Multi-language Support | √ | √ | √ |
| CANFD | √ | √(require adapter) | √(require adapter) |
| DoIP | √ | √(require adapter) | √(require adapter) |
| Display Size | 9.7″ | 9.7″ | 9.7″ |
| Wireless VCI | MaxiFlash VCI | MaxiFlash Elite | MaxiFlash Elite |
| Battery Life | 11000 mAh 3.7 V | 15400 mAh 3.7 V | 11000 mAh 3.7 V |
| Memory Storage | 128GB | 128GB | 64GB |
| Operating System | Android 10 | Android 7.0 | Android 4.4.4 |
| TPMS | — | — | — |
| Oscilloscope | √ | √ | √ |
| Inspection Camera | √ | √ | √ |
| ADAS | — | — | √ |
