MaxiCOM Ultra Lite/Ultra Lite S

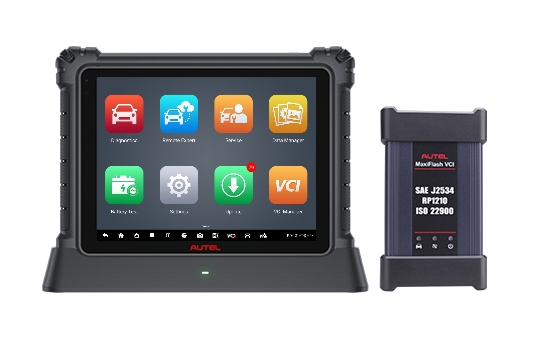

MaxiCOM Ultra Lite / Ultra Lite S is a multi-platform diagnostics solution comprised of a powerful 12.7-inch TFT-LCD touchscreen Android-based tablet, a VCI communication and diagnostics unit, and an on-tool and cloud-based repair instructions and expert advice.
-
Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
-
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
-
Automatic system and software updates with real-time push message notifications via internet
-
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
-
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
-
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
|
Operating System |
Android 7.0 |
|
Processor |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
|
Memory |
4GB RAM & 256GB On-board Memory |
|
Display |
12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
|
Connectivity |
WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) |
|
BT v.2.1 + EDR |
|
|
GPS |
|
|
USB 2.0 (Two USB HOST Type A, one USB mini device) |
|
|
HDMI 2.0 |
|
|
SD Card (Support up to 256GB) |
|
|
Camera |
Rear: 16 Megapixel, Autofocus with Flashlight |
|
Front: 5 Megapixel |
|
|
Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
|
Audio Input/Output |
Microphone |
|
Dual Speakers |
|
|
3-Band 3.5 mm stereo/standard headset jack |
|
|
Power and Battery |
18000mAh 3.8V lithium-polymer battery |
|
Charging via 12V AC/Dcpower supply with the temperature between 0°C and 45°C |
|
|
Input Voltage |
12V/3A Adapter |
|
Operating Temp. |
0 to 50°C (32 to 122°F) |
|
Storage Temperature |
-20 to 60°C (-4 to 140°F) |
|
Dimensions (WxHxD) |
366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
|
Weight |
2.18kg (4.81 lb.) |
|
Protocols |
CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Description
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Specifications
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) |
| BT v.2.1 + EDR | |
| GPS | |
| USB 2.0 (Two USB HOST Type A, one USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 5 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | 18000mAh 3.8V lithium-polymer battery |
| Charging via 12V AC/Dcpower supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18kg (4.81 lb.) |
| Protocols | CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
