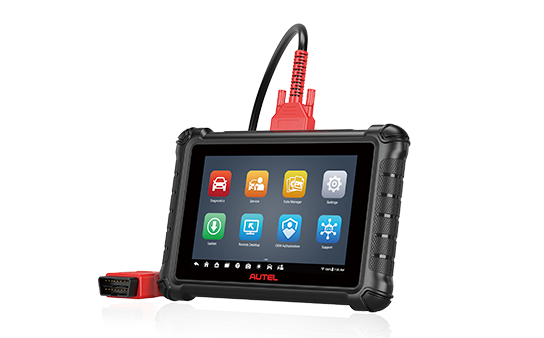

MaxiCheck MX900

All Systems Diagnostics and Service Tablet

TheMaxiCheck MX900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency

  • 8-inch high-resolution, responsive touchscreen display
  • Android 11 operating system offers advanced streamlined functionality
  • Extensive vehicle coverage for U.S., Asian, and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete code, live data, ECU information, active test, and special function capabilities
  • Supports the latest communication protocols, including DoIP and CAN FD
  • Smart AutoVIN technology for quick and accurate vehicle identification
  • Expansive menu of service and maintenance tasks
  • Detailed Pre- and Post Scan Reporting
  • Automatic system and software updates with real-time Wi-Fi push notifications
  • Remote Access Technical Support Troubleshooting
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • ·Convenient data management system for managing internal applications and reviewing data
Operating   System Android 11
Processor Quad core Processor(1.8GHz)
Memory 4GB RAM & 64GB ROM
Display 8-inch LCD capacitive touchscreen with 1280×800 resolution
Rear Camera 8 MP
Connectivity USB Type-C
USB 2.0
Wi-Fi
Mini SD card (supports up to 64GB)
Audio Input/Output Input: N/A
Output: buzzer
Power and Battery 3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input 5V/3 A
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp  -10 to 60°C (14 to 140°F)
Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.



MaxiCheck MX900 MaxiDAS DS900 MaxiCheck MX808 MaxiCheck MX808TS

Read Codes

Erase Codes
Live Data
ECU Information
Active Test
Service Functions
Complete OBD Diagnositcs
Pre & Post Scan
Scan VIN
ECU Coding
Guided Function
Tire Pressure Monitoring   System Basic Basic Basic Complete
Immobilizer Function Basic Basic Basic Basic
Advanced TPMS Diagnostics for   Complete TPMS Health Check
Activate All Known TPMS   Sensors
Program AUTEL MX-Sensors
Comprehensive OBD relearn   coverage
On-screen Relearn Procedure
DoIP
CANFD √(optional adapter) √(optional adapter)
Battery Analysis
Videoscope
Processor Quad-core 1.8GHz Quad-core 1.8GHz Quad-core 1.6GHz Quad-core 1.6GHz
Operating System Android 11 Android 11 Android 4.4.4 Android 4.4.4
Memory 4G + 64G 4G + 64G 1G + 64G 1G + 64G
Display 8″ LCD 8″ LCD 7″ LCD 7″ LCD
Battery 7700mAh 7700mAh 5000mAh 5000mAh
Internet Updatable Wi-Fi Wi-Fi Wi-Fi Wi-Fi
Multilingual Support
Historical Test Records
Save and Playback Data
Wi-Fi Print
Vehicle communication method Wired Wired Wired Wireless (bluetooth)

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Description
  • 8-inch high-resolution, responsive touchscreen display
  • Android 11 operating system offers advanced streamlined functionality
  • Extensive vehicle coverage for U.S., Asian, and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete code, live data, ECU information, active test, and special function capabilities
  • Supports the latest communication protocols, including DoIP and CAN FD
  • Smart AutoVIN technology for quick and accurate vehicle identification
  • Expansive menu of service and maintenance tasks
  • Detailed Pre- and Post Scan Reporting
  • Automatic system and software updates with real-time Wi-Fi push notifications
  • Remote Access Technical Support Troubleshooting
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • ·Convenient data management system for managing internal applications and reviewing data
Specifications
Operating   System Android 11
Processor Quad core Processor(1.8GHz)
Memory 4GB RAM & 64GB ROM
Display 8-inch LCD capacitive touchscreen with 1280×800 resolution
Rear Camera 8 MP
Connectivity USB Type-C
USB 2.0
Wi-Fi
Mini SD card (supports up to 64GB)
Audio Input/Output Input: N/A
Output: buzzer
Power and Battery 3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input 5V/3 A
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp  -10 to 60°C (14 to 140°F)
Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
Video

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Comparison
  MaxiCheck MX900 MaxiDAS DS900 MaxiCheck MX808 MaxiCheck MX808TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions
Complete OBD Diagnositcs
Pre & Post Scan
Scan VIN
ECU Coding
Guided Function
Tire Pressure Monitoring   System Basic Basic Basic Complete
Immobilizer Function Basic Basic Basic Basic
Advanced TPMS Diagnostics for   Complete TPMS Health Check
Activate All Known TPMS   Sensors
Program AUTEL MX-Sensors
Comprehensive OBD relearn   coverage
On-screen Relearn Procedure
DoIP
CANFD √(optional adapter) √(optional adapter)
Battery Analysis
Videoscope
Processor Quad-core 1.8GHz Quad-core 1.8GHz Quad-core 1.6GHz Quad-core 1.6GHz
Operating System Android 11 Android 11 Android 4.4.4 Android 4.4.4
Memory 4G + 64G 4G + 64G 1G + 64G 1G + 64G
Display 8″ LCD 8″ LCD 7″ LCD 7″ LCD
Battery 7700mAh 7700mAh 5000mAh 5000mAh
Internet Updatable Wi-Fi Wi-Fi Wi-Fi Wi-Fi
Multilingual Support
Historical Test Records
Save and Playback Data
Wi-Fi Print
Vehicle communication method Wired Wired Wired Wireless (bluetooth)
Downloads

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Accessories
